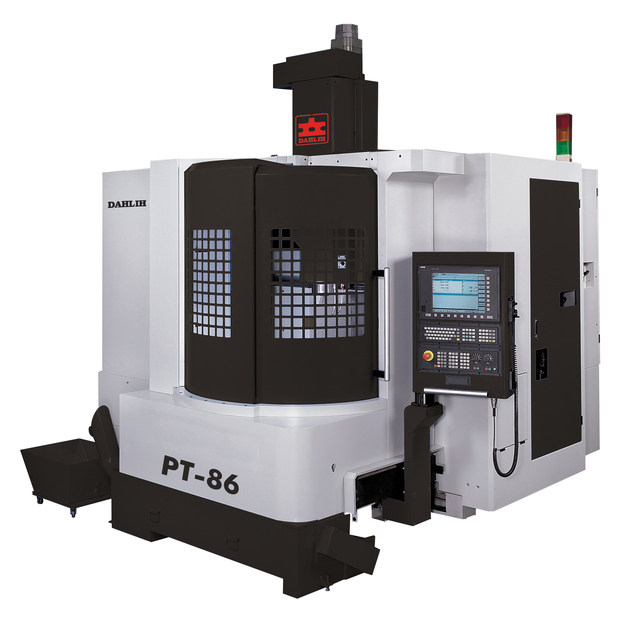

PORTAL TYPE MACHINING CENTER

pt-86

Machine Specifications
MODEL PT-86
TABLE
Working surface 800 X 750 mm
T slot (size x number x distance) 18 X 5 X 125 mm
Max. table load 800 kgw
TRAVEL
Longitudinal travel (X) 800 mm
Cross travel (Y) 600 mm
Headstock travel (Z) 510 mm
Distance between spindle nose and table top 150 ~ 660 mm
SPINDLE
Spindle taper No . 40
Spindle speeds 15000  r.p.m
FEED
Cutting feed 1 ~ 20000 mm / min
Rapid traverse 30 / 30 / 30 m / min
Minimun input increment 0.5 µm
ATC (Auto. Tool Changer)
Tool storage capacity 20  tools
Tool holder BBT40
Max. tool dia. x length ψ 90 X 300  mm
Max. tool weigth 7 kgw
Max. tool dia. of adjacent pots are empty ψ 135 mm
Tool selection Random
ACCURACY
Positioning  ( ISO 230-2 ) 0.010 mm
Repeatability accuracy ( ISO 230-2 ) 0.007 mm
MOTORS
Spindle motor  ( 30 min. rating / continuous rating  ) 15 / 11 kw
Drive motors ( X . Y . Z axis ) 7 kw
INSTALLATION REQUIREMENTS
Power requirement 220 V ± 10% ；50 / 60 Hz  ± 2% ；55KVA
Air pressure 6 bar ( kgf / cm² )
Air flowrate 1000ℓ / min
Floor space 4250 X 4110 mm
Net weight 12000 kgw
CNC CONTROLLER
Controller FANUC 18 i

STANDARD OPTION ACCESSORIES
Spindle cooling device 20,000 r.p.m spindle speeds
Heat exchange Coolant system :
Removable manual pulse generator   a. Coolant through tool
X, Y, Z, coolant through ballscrew   b. Coolant through spindle with fiter
X, Y, Z, linear guide ways   c. Coolant filter for through spindle
X, Y, Z, linear scale system    d. Coolant around spindle
Coolant wash device Oil mist device
Screw type chip conveyor + chip wagon Oil mist collector
Call light Flat type chip conveyor + chip wagon
Work light Oil skimmer
Coolant and air gun Automatic centering device
Enclosed splash guard Tool breadage detection device
Tool kit Tool length measuring device
  Air conditioner
  40 tools cam type A.T.C  ( PT-128 only )
Design and specifications are subject to change without prior notice.
