VERTICAL MACHINING CENTER

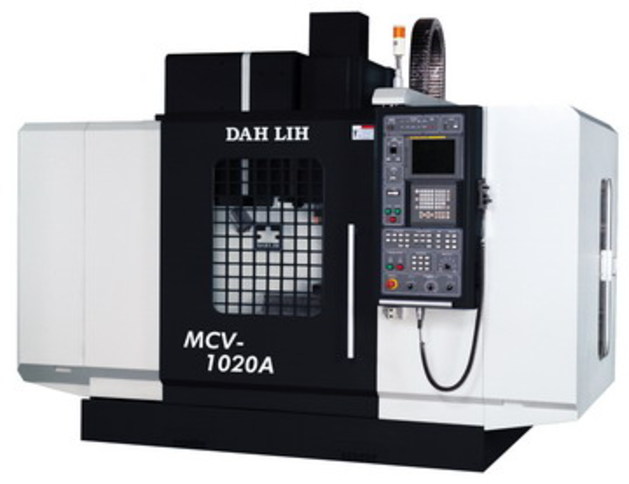

mcv-1020A


SPECIFICATIONS
MODEL MCV-1020A
TABLE
Working Surface 1250 X 660 ( 49.21 X 29.98 ) mm (inch)
T-Slots (Size x Number) 18 x 5 ( 0.71 X 5 ) mm (inch)
Max. Table Load 1000 ( 2200 ) )kg (lbs)
TRAVEL
Longitudinal Travel ( X ) 1020  ( 40.16 ) mm (inch)
Cross Travel ( Y ) 550 ( 21.65 ) mm (inch)
Headstock Travel ( Z ) 560 ( 22.05 ) mm (inch)
Distance Between Spindle End and Table Top 150 ~ 710 ( 5.91 ~ 27.95 ) mm (inch)
Distance BetWeen Spindle Center and Column Surface 600 ( 23.62 ) mm (inch)
SPINDLE
Spindle Nose N.T. 40 / N.T. 50
Spindle speeds 5000 / 6000  r.p.m
Spindle Speed Range Two gears variable
FEED
Cutting Feed 5,000 ( 197 ) mm / min (inch/min)
Rapid traverse 20 / 20 / 18 (0.787/ 0.787/ 0.708) m / min (inch/min)
Minimum Input Increment 0.001 (0.0001) mm (inch)
ATC (Automacic Tool Changer)
Tool Holder BT 40 / BT 50
Tool Storage Capacity 20 / 25
Max. Tool Dia. x Length Ø 90 X 300  (3.54 X 11.81) mm (inch)
Max. Tool Weight 6 (13)  kg (lbs)
Tool selection Random
MOTORS
Spindle Drive 30min. Rating 7.5 (10) / 5.5 (7.4)  Kw (HP)
Drive Motors     X,Y,Z  Axis 3 (4), 3 (4), 3 (4)
MACHINE WEIGHT SPACE AND PACKING
Floor Space 3575 X 4000  (140.75 X 157.48)
Net Weight 7000 (15400) kg (ibs)

STANDARD ACCESSORIES SPECIAL ACCESSORIES
Heat Exchanger Screw type chip conveyor & chip bins
Removable Manual Pulse Generator Flat type Chip Conveyor
Coolant Around Spindle Rotary Table With 4th Axis Control
Spiral Type Chip Conveyor 4th Axis Connector
Enclosed Splash Guard Coolant Through Tool
RS-232 Interface Coolant Wash
Automatic Power Off Automatic Tool Length Measuring Device
Call Light Automatic Centering Device (Renishaw MP-10)
Automatic Lubrication Equipment Automatic Pallet Changer
Work Light 32 Tool CAM ATC / BT40
Tool Kit 24 Tool CAM ATC / BT50
Spare Fuses
Pendant Type Operator Panel
Spindle Cooler
Rigid Tapping
Specifications are subject to change without prior notice.
