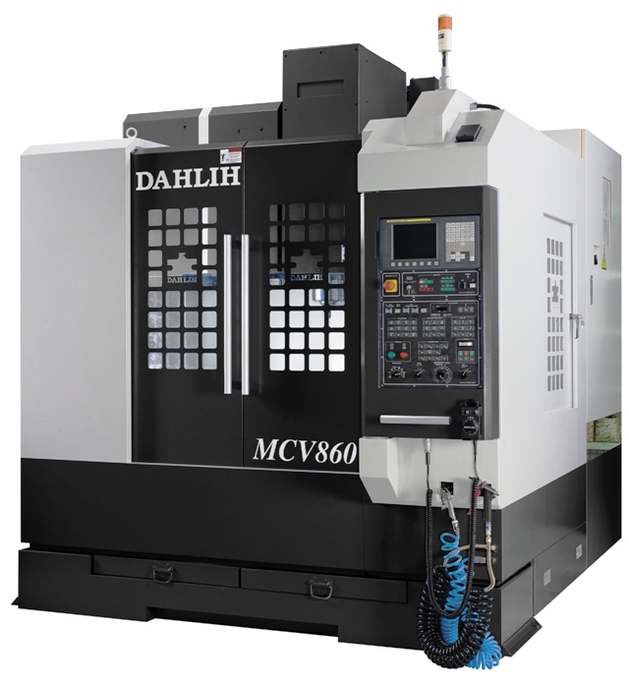

VERTICAL MACHINING CENTER


mcv-860


SPECIFICATIONS

MODEL
MCV-860
TABLE
Table work surface area ( X-axis x Y-axis )
950 X 550 mm
T-Slots ( Size x Number x Centres )
18 x 3 x 150 mm
Max. workpiece weight
800 kg
TRAVEL
X x X-axis / Y x Y-axis / Z x Z-axis
860 mm / 550 mm / 550 mm
Table top surface to spindle nose
150 ~ 700 mm
Distance between spindle center andcolumn surface
600  mm
Hollow callscrew with cooling sustem
-
Slideway type ( X, Y & Z-axis )
Linear Guideway
FEED
Rapid traverse rate   X-axis
40 m / min
                                 Y-axis
40 m / min
                                 Z-axis
30 m / min
Cutting feed rate
10000 mm / min
Minimum Input Increment
0.001 mm
SPINDLE
Spindle holder
Belt-type
Spindle motor ( 30 min. rating / continuous rating )
7.5 KW (10HP) / 11KW (14.7HP)
Type of tool shank
N.T. 40
Spindle speed
8000 rpm
Spindle bearing bore diameter
Ø 70 mm
Spindle max. torque
47.7 N-m
Cooling / Lubrication
Oil / Grease
A.T.C
Tool magazine capacity
24 T
Tool holder
BT 40
Pull stud
Jaw Type 45°  Pull Head
Max. tool weight
7 kg
Max. tool length
300 mm
Max. tool Dia
Ø 77 ( 127 ) mm
Tool selection
Random
MOTORS
X-axis drive motors
 3 KW  ( 4HP )
Y-axis drive motors
3 KW  ( 4HP )
Z-axis drive motors
4 KW  ( 5.3HP )
OTHER
Power
36 KVA
Pneumatic pressure
6 kg / cm²
Cutting pump
3 / 4 HP
coolant tank capacity
300 L
Net weight
5400 kgf
Floor space
2260 x 2900 mm


STANDARD
OPTIONS
Heat exchanger
Screw type chip conveyor with chip bins
Removable manual pulse generator
Flat type chip conveyor and chip bin
Enclosed splash guard
4th axis control and rotary table
RS-232 interface
Coolant through spindle with filter
Automatic power off
Bed coolant wash
Call light
Automatic tool length measuring device
Automatic lubrication equipment
Automatic workpiece measuring device
Work light
Linear scale
Tool kit
30, 32, 40 tools cam type ATC
Spare fuses
12,000 rpm / 15,000 rpm direct drive spindle
Swing type operator panel
15,000 rpm built-in spindle
Spindle oil cooler

24 tools cam type ATC

Rigid tapping

Chip augers on base



Specifications are subiect to change without prior notice.
