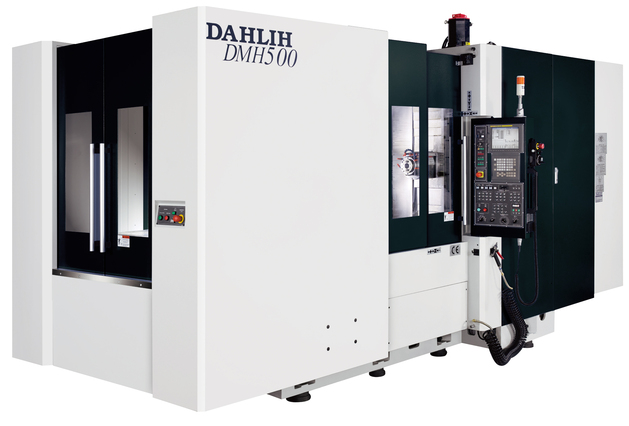

HORIZONTAL MACHINING CENTER


dmh-500


SPECIFICATIONS
MODEL DMH-500
TABLE
Pallet Dimensions 500 X 500 mm
Min. Indexing Angle 1 °
Max. Table Load 600 kgs
TRAVEL
Longitudinal Travel (X) 750 mm
Vertical Travel (Y) 680 mm
Cross Travel (Z) 650 mm
Distance of Spindle End to Table Center 150 - 800 mm
Distance of Spindle Center to Table Surface 50 - 730  mm
SPINDLE
Spindle Nose N.T.40 / N.T.50
Spindle Speeds 120 - 12000 (#40) / 100 - 10000 (#50)
FEED
Cutting Feed 1 - 10000 mm / min
Rapid Traverse 40  m / min
Min. Input Increment 0.001 mm
ATC ( Automatic Tool Changer )
Tool Shank B.T.40 / B.T.50
Tool Storage Capacity 40 Tool
Max. Tool ( Diam. x Length ) Ø100 x 400 mm
Max. Tool Weigth 8 kgs
Tool Selection Random
MOTORS
Spindle Motor ( Rated Output for 30 Minutes ) #40 11kw (15HP) / #50 18.5kw (25HP)
Drive Motors  X-axis 4 kw ( 5.4 HP)
                         Y-axis 4 kw ( 5.4 HP)
                         Z-axis 4 kw ( 5.4 HP)

MACHINE SPACE AND WEIGHT
Floor Space 2650 X 5000 mm
Machine Weight 15,000 Kgs
STANDARD OPTIONS
Spindle cooling device ATC tool storage：60 / 90
Heat exchanger Coolant through spindle
Automatic pallet changer with manual rotation BT40 / 15,000 rpm direct drive spindle
Removable manual pulse generator Continuous rotation B-axis 0.001º
X.  Y.  Z. linear guide ways Laser auto tool measuring device ( Non-contact )
Flood coolant device Automatic centering device
Coolant tank
Spiral type chip auger
Automatic power cut-off device
Work light
Tool kit
Flat type chip conveyor


Design and specifications are subject to change without prior notice.
