regloplas

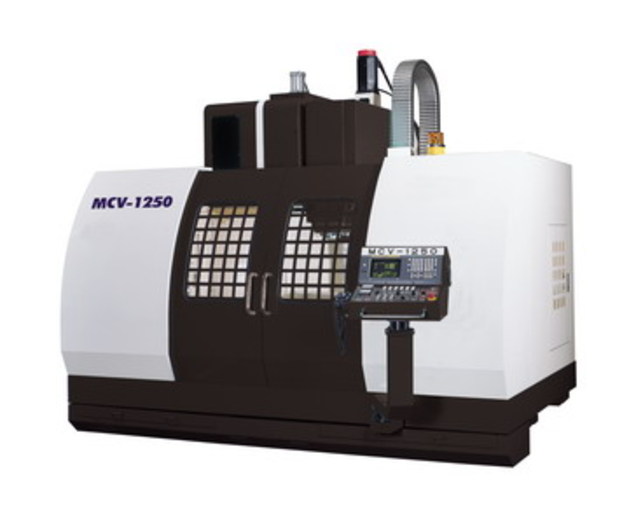

VERTICAL MACHINING CENTER


mcv-1250


SPECIFICATIONS
MODE MCV-1250
TABLE
Working Surface 1,400 X 820 ( 55 X 32.3 ) mm ( inch )
T-Slots ( Size X Number ) 22 X 5 ( 0.87 X 5 ) mm ( inch )
Max. table load 1,500 ( 3300 ) kg ( lbs )
TRAVEL
Longitudinal Travel ( X ) 1,250 ( 49.2 ) mm ( inch )
Cross Travel ( Y ) 650 ( 25.6 ) mm ( inch )
Headstock Travel ( Z ) 700 ( 27.6 ) mm ( inch )
Distance Between Spindle End and Table Top 200 - 900 ( 7.87 - 35.4 ) mm ( inch )
Distance Between Spindle Center and Column Surloce 710 ( 28 ) mm ( inch )
SPINDLE
Spindle Nose N.T. 50
Spindle Speeds 4,500  R.P.M.
Spindle Speed Ronge Two Gears Variable
FEED
Cutting Feed 5,000( 197 ) mm/min ( inch/min )
Rapid traverse 20 / 20 / 12 ( 787/ 787/ 787 ) mm/min ( inch/min )
Minimum Input Increment 0.001 ( 0.0001 ) mm ( inch )
ATC ( Automacic Tool Changer )
Tool Holder BT 50
Tool Storage Capacity 24 Tools
Max. Tool Dia. X Length 110 X 350 ( 4.3 X 13.8 ) ψ X mm ( inch )
Max. Tool Weight 15 ( 33 ) kg ( lbs )
Tool Selection Random
MOTORS
Spindle Drive   Continuous Rating 11 ( 14.7 ) Kw ( HP )
Motor               Rated Output for 30 Minutes 15 ( 20 ) Kw ( HP )
Drive Motors    X,Y,Z Axis 4 (5.4), 4 (5.4) , 3 (4)
MACHINE WEIGHT SPACE AND PACKING
Floor Space 5,006 X 4,256 ( 197.09 X 167.56 ) mm ( inch )
Net Weight 10,500 ( 23,100 ) Kg ( lbs )


STANDARD ACCESSORIES SPECIAL ACCESSORIES
Heat Exchanger Enclosed Splash Guard
Removable Manual Pulse Generator Flat Type Chip Conveyor & Chip Wagon
Coolant Around Spindle Rotary Table With 4th Axis Control
Spiral Type Chip Conveyor 4th Axis Connector
Semi-enclosed Splash Guard Coolant Through Tool
RS-232 Interface Coolant Through Spindle With Filter
Automatic Power Off Coolant Wash
Call Light Automatic Tool Length Measuring Device
Automatic Lubrication Equipment Automatic Centering Device (Renishaw MP-10)
Work Light Automatic Pallet Changer
Tool Kit Cam Mechanism ATC (40 Tools)
Spare Fuses
Pendant Type Operator Panel
Spindle Cooler
Rigid Tapping

Specifications are subject to change without prior notice.
