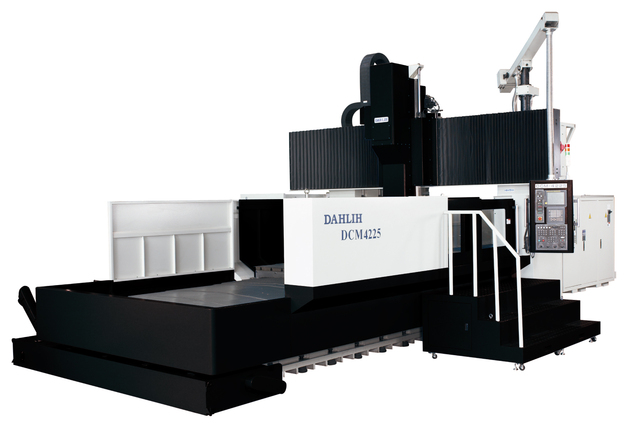

DOUBLE COLUMN MACHINING CENTER

dcm-4225


MACHINE SPECIFICATIONS
MODEL DCM-4225
TABLE
Working Surface 4000 X 2200 mm
T slot (size x number x distance ) 22 X 11 X 200 mm
Max. table load 12000 kgw
Distance between table top and ground 1000 mm
TRAVEL
Longitudinal travel (X) 4200 mm
Cross travel (Y) 2500 mm
Headstock travel (Z) 800 mm
Distance between spindle nose and table top 200 ~ 1000 mm
Distance between columns 2540 mm
FEED
Cutting 10 / 10 / 10 m / min
Rapid traverse 1 ~ 5000 mm / min
Minimun input increment 0.001 mm
SPINDLE
Spindle taper NO. 50
Spindle speeds 4500 r.p.m.
Spindle bearing diameter Ø 100 mm
Cooling / lubrication oil cooling / grease
ATC (Auto. Tool Changer)
Tool storage capacity 32 tools
Tool holder B.T. 50
Max. tool weight 18 kgw
Max. tool length 400  mm
Max. tool diameter Ø 125 mm
Max. tool dia. of adjacent pots are empty Ø 250 mm
Tool selection Bi-direction
MOTORS
Spindle motor ( 30 min. rating / continuous rating ) 18.5 / 15 Kw
Drive motors (  X, Y, Z - axis ) 11 / 5.5 / 5.5  Kw
INSTALLATION REQUIREMENTS
Power requirement 220 v ± 10 % ; 50 / 60 Hz ± 2% ;  64 KVA
Air pressure 5 - 7 bar (kgf / c㎡)
Air flowrate 100 l / min
Floor space 5650 x 11120  mm
Net weight 40000 Kgw
CNC CONTROLLER
Controller FANUC 0i MC
STANDARD ACCESSORIES OPTION ACCESSORIES
Spindle cooling device BT50 6000 r.p.m. gear drive spindle
Coolant around spindle BT50 10000 r.p.m. direct spindle
Heat exchanger BT40 15000 r.p.m. built-in spindle
Removable manual pulse generator Coolant through spindle with filter
Screw type chip conveyor + chip wagon Oil mis device
Screw chip auger Flat type chip conveyor + chip wagon
Call light Oil skimmer
Work light 90° angular head
Splash guard X, Y, Z linear scale
Tool kit Automatic centering device
Coolant and air gun Tool breakage detection device
　 Tool length measuring device
　 Tool presetter
　 Buzzer device
　 Air conditioner
　 ATC tool storage：40 / 60 tools
Design and specifications are subject to change without prior notice.
