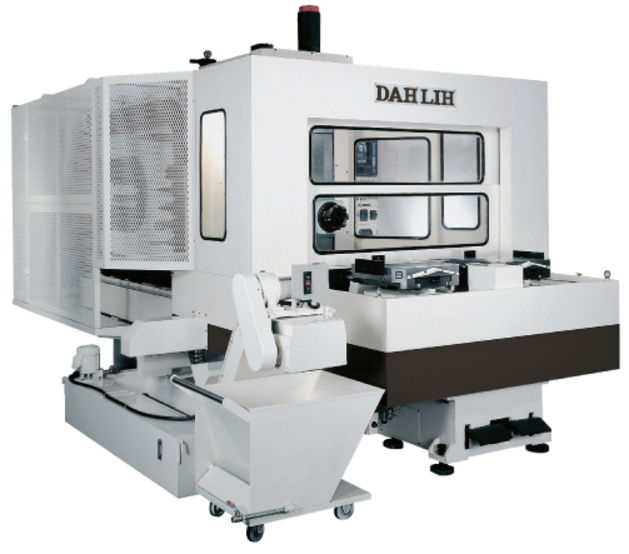

HORIZONTAL MACHINING CENTER


mch-500


MACHINE SPECIFICATIONS
MODEL UNIT MCH-500 MCH-800
TABLE
Pallet Dimensions mm (inch) 500 (19.69) X 500 (19.69) 800 (31.50) x 800 (31.50)
Min. Indexing Angle ° 1°( 1/1,000°)  1°( 1/1,000°)
Max. Table Load kgw (lbs) 800 (1,760) 2,000 (4,400)
TRAVEL
Longitudinal Travel (X) mm (inch) 750 (29.53) 1350 (53.15)
Vertical Travel (Y) mm (inch) 680 (26.77) 1000 (39.37)
Cross Travel (Z) mm (inch) 600 (23.62) 1000 (39.37)
Distance of Spindle End to Table Center mm (inch) 180 (7.09) - 780 (30.71) 300 (11.81 - 1,300 (51.18))
Distance of Spindle Center to Table Surface mm (inch) 50 (1.97) - 730  (28.74) 50 (1.97) - 1,50 (41.34)
SPINDLE
Spindle Nose   N.T.  50 N.T. 40 N.T. 50 N.T. 40
Spindle Speeds r. p. m. 6000 (3,500)   8,000 (10,000) 6,000 (3,500) 8,000 (10,000)
Spindle Speed Range   Two gears variable Infinite variable Two gears variable Infinite variable
FEED
Cutting Feed mm (inch) / min 10000 (393.70) 5,000 (196.85)
Rapid Traverse m (inch) / min 15  (590.55) 10 (393.70)
Min. Input Increment mm (inch) 0.001 (0.0001) 0.001 (0.0001)
ATC (Automatic Tool Changer)
Tool Holder   BT 50 BT 40 BT 50 BT 40
Tool Storage Capacity tools 60 (90, 120) 60 (90, 120)
Max. Tool Dia. x Length Ø x mm 110 x 500   110 x 400 110 x 500 110 x 400
  Ø x inch 4.33 x 19.69 4.33 x 15.75 4.33 x 19.69 4.33 x 15.75
Max. Tool Weight kgw (lbs) 20 (44) 8 (17.6) 20 (44) 8 (17.6)
Tool Selection   Bi - Directional Bi - Directional
MOTORS
Spindle Motor Continuous Rating     kw / HP 15 / 20.1 7.5 / 10 (11 / 14.7) 15 / 20.1 7.5 / 10 (11 / 14.7)
                  Rating Output for 30 Minutes kw / HP 18.5  / 24.8  11 / 14 (15 / 20.1) 18.5  / 24.8  11 / 14 (15 / 20.1)
Drive Motors  X Axis kw / HP 3.0 / 4.0 3.0 / 4.0  4.2 / 5.6 4.2 / 5.6
                      Y Axis kw / HP 3.0 / 4.0 3.0 / 4.0  4.2 / 5.6 4.2 / 5.6
                      Z Axis kw / HP 3.0 / 4.0 3.0 / 4.0 4.2 / 5.6 4.2 / 5.6

MACHINE WEIFHT SPACE AND PACKING

　
Floor Space mm (inch) 3170 (124.80) X 4920 (193.70)  4,410 (173.62 x 6,495 (255.71))　
Net Weight kgw (lbs) 15,000 (33,000) 24,000 (52,800)　
STANDARD   ACCESSORIES
Spindle cooling device   ATC tool storage：90 , 120
Heat exchanger   Coolant system：shower coolant , coolant gun , oil hole coolant
Automatic pallet changer with manual rotation   Oil mist device
Removable-type manual pulse generator   Flat - type chip conveyor
X.  Y.  Z. linear scales   Chip wagon
Flood coolant device   Automatic centering device
Spiral type chip conveyors   Tool breakage detection device
spindle load meter   Tool length measuring device
Spindle speed meter   Tool presenter
Automatic power cut-off device   Additional call light
Call light   Buzzer device
Work light
Tool kit

Design and specifications are subject to change without prior notice.
