SPECIFICATIONS |
| MODE |

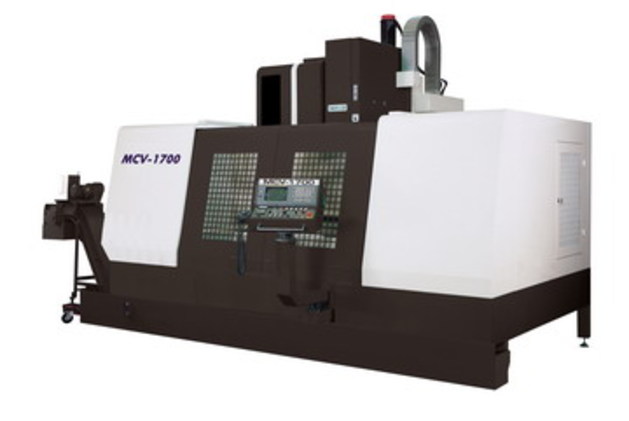

MCV-1700 |
MCV-1700B |
| TABLE |
|
| Working Surface |
1,900 X 1,010 ( 74.8 X 39.76 ) mm ( inch ) |
| T-Slots ( Size X Number ) |
22 X 5 ( 0.87 X 5 ) mm ( inch ) |
| Max. table load |
2,000 ( 4400 ) kg ( lbs ) |
| TRAVEL |
|
| Longitudinal Travel ( X ) |
1,700 ( 66.92 ) mm ( inch ) |
| Cross Travel ( Y ) |
800 ( 31.50 ) mm ( inch ) |
| Headstock Travel ( Z ) |
750 ( 29.53 ) mm ( inch ) |
| Distance Between Spindle End and Table Top |
200 - 950 ( 7.87 - 37.4 ) mm ( inch ) |
| Distance Between Spindle Center and Column Surloce |
850 ( 33.46 ) mm ( inch ) |
| SPINDLE |
|
| Spindle Nose |
N.T. 50 |
N.T. 40 |
| Spindle Speeds |
45 - 4,500 R.P.M. |
8,000 (10,000) |
| Spindle Speed Ronge |
Two Gears Variable |
Infinite Variable |
| FEED |
|
| Cutting Feed |
10,000 ( 393.7 ) mm/min ( inch/min ) |
| Rapid traverse |
15/15/8 ( 591/ 591/ 315 ) mm/min ( inch/min ) |
| Minimum Input Increment |
0.001 ( 0.0001 ) mm ( inch ) |
| ATC ( Automacic Tool Changer ) |
|
| Tool Holder |
BT 50 |
BT 40 |
| Tool Storage Capacity |
32 Tools |
30 |
| Max. Tool Dia. X Length |
110 X 350 ( 4.3 X 13.8 ) ψ X mm ( inch ) |
76 x 300 (3.0 x 11.8) |
| Max. Tool Weight |
15 ( 33 ) kg ( lbs ) |
7 (15.4) |
| Max. Tool Dia. of adjacent pots are empty |
150 ψ X mm |
- |
| Tool Selection |
Random |
| MOTORS |
|
| Spindle Drive Continuous Rating |
11 ( 15 ) Kw ( HP ) |
| Motor Rated Output for 30 Minutes |
15 ( 20 ) Kw ( HP ) |
| Drive Motors X,Y,Z Axis |
4.2 (5.6), 4.2 (5.6) , 4.2 (5.6) |
| MACHINE WEIGHT SPACE AND PACKING |
|
| Floor Space |
6,310 X 4,610 ( 248.43 X 181.50 ) mm ( inch ) |
| Net Weight |
15,500 ( 34,100 ) Kg ( lbs ) |
| |
|
|
| |
|
| STANDARD ACCESSORIES |
SPECIAL ACCESSORIES |
| Heat Exchanger |
Enclosed Splash Guard |
| Removable Manual Pulse Generator |
Flat Type Chip Conveyor & Chip Wagon |
| Coolant Around Spindle |
Rotary Table With 4th Axis Control |
| Spiral Type Chip Conveyor |
4th Axis Connector |
| Semi-enclosed Splash Guard |
Coolant Through Tool |
| RS-232 Interface |
Coolant Through Spindle With Filter |
| Automatic Power Off |
Coolant Wash |
| Call Light |
Automatic Tool Length Measuring Device |
| Automatic Lubrication Equipment |
Automatic Centering Device (Renishaw MP-10) |
| Work Light |
Automatic Pallet Changer |
| Tool Kit |
Cam Mechanism ATC (40 Tools) |
| Spare Fuses |
|
| Pendant Type Operator Panel |
|
| Spindle Cooler |
|
| Rigid Tapping |
|
| |
|
| Specifications are subject to change without prior notice. |
