SPECIFICATIONS |
| MODE |

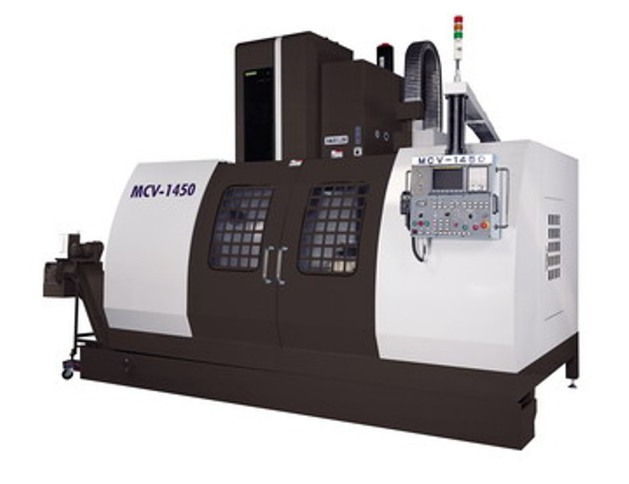

MCV-1450 |
| TABLE |
| Working Surface |
1,600 X 800 ( 62.99 X 31.5 ) mm ( inch ) |
| T-Slots ( Size X Number ) |
22 X 5 ( 0.87 X 5 ) mm ( inch ) |
| Max. table load |
2,000 ( 4400 ) kg ( lbs ) |
| TRAVEL |
| Longitudinal Travel ( X ) |
1,450 ( 57.09 ) mm ( inch ) |
| Cross Travel ( Y ) |
750 ( 29.53 ) mm ( inch ) |
| Headstock Travel ( Z ) |
750 ( 29.53 ) mm ( inch ) |
| Distance Between Spindle End and Table Top |
200 - 950 ( 7.87 - 37.4 ) mm ( inch ) |
| Distance Between Spindle Center and Column Surloce |
850 ( 33.46 ) mm ( inch ) |
| SPINDLE |
| Spindle Nose |
N.T. 50 |
| Spindle Speeds |
45 - 4,500 R.P.M. |
| Spindle Speed Ronge |
Two Gears Variable |
| FEED |
| Cutting Feed |
10,000 ( 393.7 ) mm/min ( inch/min ) |
| Rapid traverse |
20 / 20 / 12 ( 787/ 787/ 472 ) mm/min ( inch/min ) |
| Minimum Input Increment |
0.001 ( 0.0001 ) mm ( inch ) |
| ATC ( Automacic Tool Changer ) |
| Tool Holder |
BT 50 |
| Tool Storage Capacity |
32 Tools |
| Max. Tool Dia. X Length |
110 X 350 ( 4.3 X 13.8 ) ψ X mm ( inch ) |
| Max. Tool Weight |
15 ( 33 ) kg ( lbs ) |
| Max. Tool Dia. of adjacent pots are empty |
150 ψ X mm |
| Tool Selection |
Random |
| MOTORS |
| Spindle Drive Continuous Rating |
11 ( 15 ) Kw ( HP ) |
| Motor Rated Output for 30 Minutes |
15 ( 20 ) Kw ( HP ) |
| Drive Motors X,Y,Z Axis |
4 (5.4), 7.0 (9.4) , 4.2 (5.6) |
| MACHINE WEIGHT SPACE AND PACKING |
| Floor Space |
5,330 X 4,150 ( 209.84 X 163.39 ) mm ( inch ) |
| Net Weight |
14,500 ( 33,880 ) Kg ( lbs ) |
| |
|
| |
|
| STANDARD ACCESSORIES |
SPECIAL ACCESSORIES |
| Heat Exchanger |
Enclosed Splash Guard |
| Removable Manual Pulse Generator |
Flat Type Chip Conveyor & Chip Wagon |
| Coolant Around Spindle |
Rotary Table With 4th Axis Control |
| Spiral Type Chip Conveyor |
4th Axis Connector |
| Semi-enclosed Splash Guard |
Coolant Through Tool |
| RS-232 Interface |
Coolant Through Spindle With Filter |
| Automatic Power Off |
Coolant Wash |
| Call Light |
Automatic Tool Length Measuring Device |
| Automatic Lubrication Equipment |
Automatic Centering Device (Renishaw MP-10) |
| Work Light |
Automatic Pallet Changer |
| Tool Kit |
Cam Mechanism ATC (40 Tools) |
| Spare Fuses |
Graphite Filtering System |
| Pendant Type Operator Panel |
|
| Spindle Cooler |
|
| Rigid Tapping |
|
| |
|
| Specifications are subject to change without prior notice. |
