HORIZONTAL MACHINING CENTER




SPECIFICATIONS

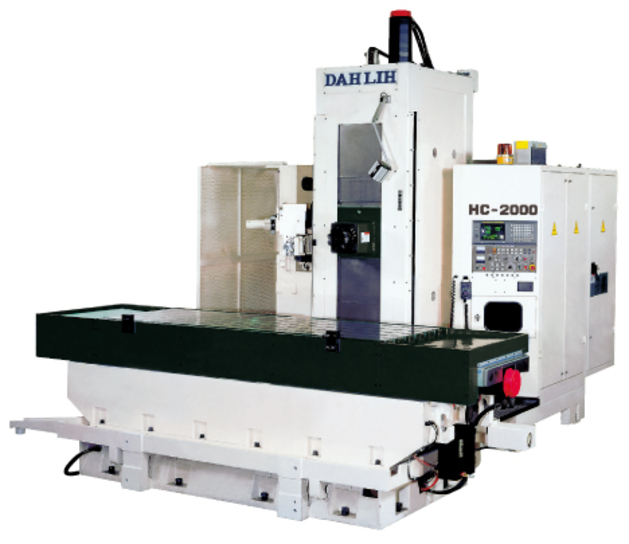

SPECIFICATIONS HC-2000
TABLE
Pallet dimensions 2300 X 970 mm   90.6" x 38.2"
T Slot 22 mm x 5 0.86 x 5
Max. table load 7000 kg 15148 lb
TRAVEL
Longitudinal travel (X) 2000 mm 78.7"
Vertical travel (Y) 1000 mm 39.4"
Cross travel (Z) 1000 mm 39.4"
Distance of spindle end to table center 385 ~ 1385 mm 15" ~ 54.5"
Distance of spindle center to table surface 75 ~ 1075  mm 2.95" ~ 42.3"
SPINDLE
Spindle nose NT50
Spindle speeds 20 ~ 3500 r.p.m.
Spindle speed range Infinite variable
FEED
Cutting feed 1 ~ 4000 mm / min 0.01 ~ 157" / min
Rabid traverse 10000 m m / min 399" / min
Min.input increment 0.001 mm 0.0001"

ATC (Automatic Tool Charger)


Tool storage capacity 60
Max.tool (Dia. x Length) Ø 110 X 500  mm Ø 4.3" x 20"
Max.tool weight 20 kg 44 lb
Tool selection Bi-Direction
MOYORS
Spindle motor (Rated output for 30 minutes) 18.5 Kw / 25 HP
Drive motors X-axis 3.3 kw / 5.6 HP
                        Y-axis 3.3 kw / 5.6 HP
                        Z-axis 3.3 kw / 5.6 HP

MACHINE SPACE AND WEIGHT

 　
Floor space 5750 X 5605 mm 226.4" ~ 220.7"
Machine weight 21,000 Kg 46255 lb
STANDARD OPTION
SPINDLE COOLING DEVICE ATC TOOL STORAGE：90
HEAT EXCHANGER COOLANT SYSTEM ：HOLE COOLATNT
REMOVABLE TYPE MANUAL PULSE GENERATOR OIL MIST DEVICE
FLOOD COOLANT DEVICE FLAT TYPE CHIP CONVEYOR
COOLANT TANK CHIP WAGON
SPIRAL TYPE CHIP CONVEYORS AUTOMATIC CENTERING DEVICE
SPINDLE LOAD METER TOOL BREAKAGE DETECTTON DEVICE
SPINDLE SPEED METER TOOL LENGTH MEASURING DEVICE
AUTOMATIC POWER CUT-OFF DEVICE LINEAR SCALE SYSTEM
CALL LIGHT TOOL PRESETER
WORK LIGHT THREE LAYER LIGHT
TOOL KIT BUZZER DEVICE
ANGLE PLATE B-SPLASH GUARD
CENTRALIZED LUBRICATING SYSTEMS VERTICAL TRAVEL (Y)：1300
Specifications are subject to change without prior notice.
