TRAVELLING COLUMN VERTICAL

dmh-1200


SPECIFICATIONS

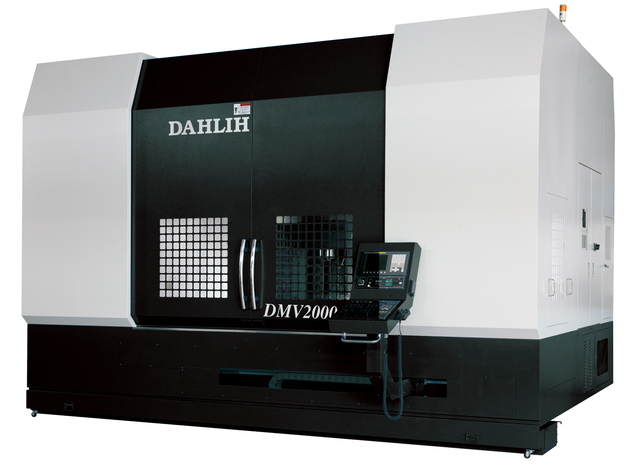

MODEL DMV-2000
TABLE
Table work suface area (X-axis x Y-axis) 18 x 5 X 150  mm
T-Slots (Size x Number x Distance) 3000 kgw
Max. workpiece weight loadable on table 2100 x 700  mm
TRAVEL
X-axis / Y-axis / Z-axis 2000 mm / 700 mm / 650 mm
Table top surface to spindle nose 150 ~ 800  mm
Distance between spindle center and column 870 mm
Rail type (X. Y. Z axis) Linear Guideway
X. Y. Z axis transmission Flexible
SPINDLE
Spindle Belt Type
Spindle motor ( 30 min.rating / continuous rating ) (kw(HP)) α8 /8000 i , 11 ( 14.7 ) / 7.5 ( 10 )
Type of tool shank N.T. 40
Spindle speed 8000 rpm
Spindle bearing diameter Ø 70 mm
Spindle max. torque 47 N-m
Cooling / Lubrication 0.001 mm
FEED
Cutting feed rate 10,000  mm / min
Rapid traverse rate： X-axis 40 m / min
Rapid traverse rate： Y-axis 40 m / min
Rapid traverse rate： Z-axis 30 m / min
Minimun Input Increment 0.001 mm
A.T.C 系統
Tool magazine capacity 32T
Tool holder BT40
Pull stud BT40 - 45º
Max. tool weight 7 kg
Max. tool length 300 mm
Max. tool dia. (No adjacent tool) Ø 76 ( Ø 127 mm)
Tool selection Random
MOTORS
X-axis drive motors KW (HP) α22 / 3000 i 4.0 KW ( 5.4 HP )
Y-axis drive motors KW (HP) α30 / 3000 i 7.0 KW ( 9.4 HP )
Z-axis drive motors KW (HP) α30B / 3000 i 7.0 KW ( 9.3 HP )
CNC CONTROLLER FANUC 0i MD
OTHERS
Power 40 KVA
Pneumatic pressure (Supply) 6 kg / cm²
Cutting pump 3 / 4 HP
coolant tank capacity (Total Volumn / Actual Volumn) 400 L
Net weight 16000 kgf
Floor space 5000 x 4440 mm
STANDARD OPTIONS
Heat exchanger Screw type chip conveyor
Removable manual pulse generator  Flat type chip conveyor
Enclosed splash guard    Conventional NC rotary table
RS-232 interface   Inserted type rotary table
Automatic power off Coolant through spindle with filter
Call light Automatic tool length measuring device
Work light Automatic workpiece measuring device
Tool kit and tool box 40 tools cam type ATC
Spare fuses 12,000 rpm / 15,000 rpm direct drive spindle
Swing type operator panel 15,000 rpm built-in spindle
Spindle oil cooler
32 tools cam type ATC
Rigid tapping

Specifications are subiect to change without prior notice.
