regloplas

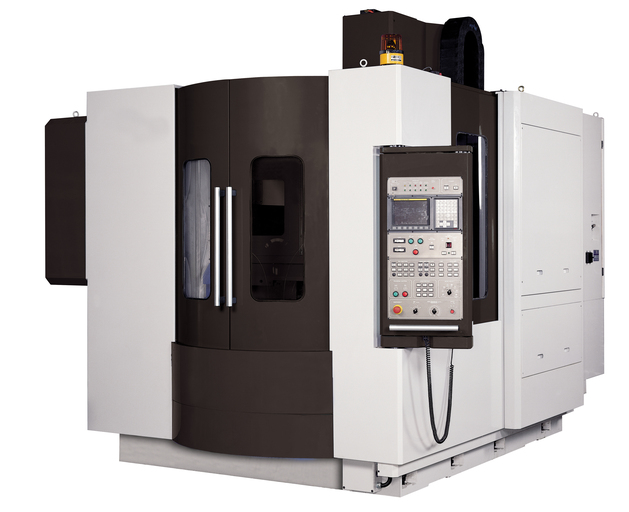

TRAVELLING COLUMN VERTICAL

dmh-800


SPECIFICATIONS
MODE DMV-800
TABLE
T-Slots (width x number x distance) 18 x 3 x 159 mm
Max. table load (single side) 600 kgw
Height from table surface to floor 880 mm
TRAVEL
X axis 880 mm
Y axis 560 mm
Z axis 560 mm
Distance between spindle to table surface 150 ~ 710 mm
FEED
Feed rapid traverse: X asis 30 m/min
Feed rapid traverse: Y asis 30 m/min
Feed rapid traverse: Z asis 24 m/min
Cutting feed 1 ~ 10000 mm/min
Minimum input increment 0.001 mm
SPINDLE
Spindle motor (30 min. rating/continuous rating) 11 KW/7.5 KW
Spindle taper # 40
Spindle speed 80 ~ 8000 rpm
ATC SYSTEM
Tool storage capacity 32
Tool shank BT40
Max. tool weight 8 kgw
ax. tool length 300 mm
Tool selection Random
OTHERS
Power requirement 220v +- 10%
50/60Hz +- 2%
60 KVA
Air pressure 6 kg/cm^2
Coolant tank 400 f
Net weight 12500 kgw
Floor space 2700 x 4300 mm
Specifications are subject to change without prior notice.
