VERTICAL MACHINING CENTER

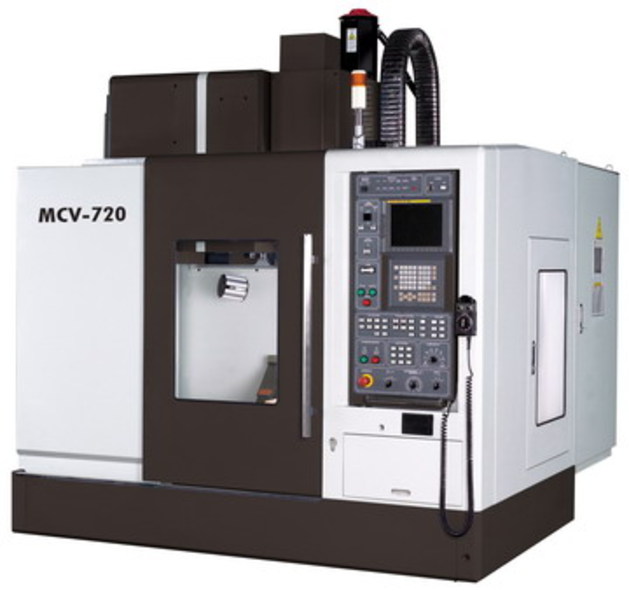

MCV-720


SPECIFICATIONS
MODE MCV-720
TABLE
Working Surface 950 X 560 ( 37.40 X 22.05 ) mm ( inch )
T-Slots ( Size X Number ) 18 X 3 ( 0.71 X 3 ) mm ( inch )
Max. table load 500 ( 1100 ) kg ( lbs )
TRAVEL
Longitudinal Travel ( X ) 720 ( 28.35 ) mm ( inch )
Cross Travel ( Y ) 460 ( 18.11 ) mm ( inch )
Headstock Travel ( Z ) 510 ( 20.8 ) mm ( inch )
Distance Between Spindle End and Table Top 150 - 660 ( 5.91 - 25.98 ) mm ( inch )
Distance Between Spindle Center and Column Surloce 480 ( 18.90 ) mm ( inch )
SPINDLE
Spindle Nose N.T. 40
Spindle Speeds 8,000  R.P.M.
Spindle Speed Ronge Infinite Variable
FEED
Cutting Feed 10,000 ( 393.7 ) mm/min ( inch/min )
Rapid traverse 30 / 30 / 20 ( 1181/ 1181/ 787 ) mm/min ( inch/min )
Minimum Input Increment 0.001 ( 0.0001 ) mm ( inch )
ATC ( Automacic Tool Changer )
Tool Holder BT 40
Tool Storage Capacity 16 Tools
Max. Tool Dia. X Length 90 X 250 ( 3.54 X 9.84 ) ψ X mm ( inch )
Max. Tool Weight 6 ( 13 ) kg ( lbs )
Tool Selection Bi-Directional
MOTORS
Spindle Drive   Continuous Rating 7.5 ( 10 ) Kw ( HP )
Motor               Rated Output for 30 Minutes 11 ( 14.7 ) Kw ( HP )
Drive Motors    X,Y,Z Axis 1.2 (1.6), 1.2 (1.6) , 3.0 (4)
MACHINE WEIGHT SPACE AND PACKING
Floor Space 3118 X 2640 ( 122.76 X 103.94 ) mm ( inch )
Net Weight 4400 ( 9680 ) Kg ( lbs )


STANDARD ACCESSORIES SPECIAL ACCESSORIES
Heat Exchanger Enclosed Splash Guard
Removable Manual Pulse Generator Flat Type Chip Conveyor & Chip Wagon
Coolant Around Spindle Rotary Table With 4th Axis Control
Spiral Type Chip Conveyor 4th Axis Connector
Semi-enclosed Splash Guard Coolant Through Tool
RS-232 Interface Coolant Through Spindle With Filter
Automatic Power Off Coolant Wash
Call Light Automatic Tool Length Measuring Device
Automatic Lubrication Equipment Automatic Centering Device (Renishaw MP-10)
Work Light Automatic Pallet Changer
Tool Kit Cam Mechanism ATC (24 Tools)
Spare Fuses                  Max. Tool Doa. X Length                                77 X 300 ( 3.03 X 11.81 ) ψ X mm ( ψ X inch )
Pendant Type Operator Panel                  Max. Tool Weight                                            7 ( 15 )  Kg ( lbs )
Spindle Cooler                  Max. Tool Dia. of adjacent pots are empty     127 ψmm
Rigid Tapping 10,000 / 12,000 / 15,000 rpm Spindle Speeds
  Graphite Filtering System
Specifications are subject to change without prior notice.
