SPECIFICATIONS |
| MODE |

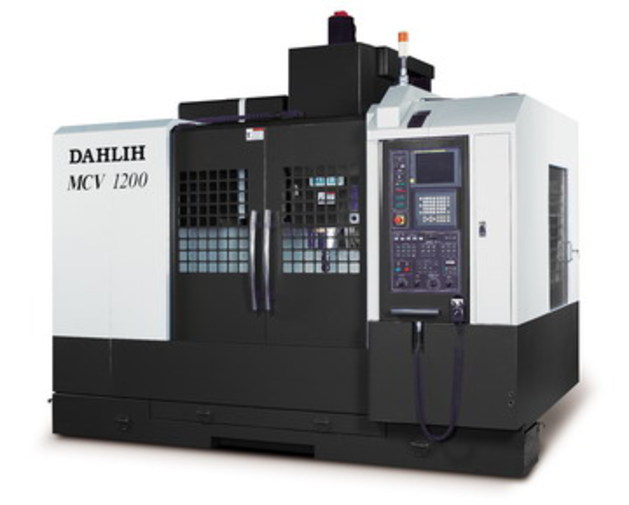

MCV-1200 |
| TABLE |
| Working Surface |
1,300 X 640 ( 51.18 X 25.19 ) mm ( inch ) |
| T-Slots ( Size X Number ) |
18 X 5 ( 0.71 X 5 ) mm ( inch ) |
| Max. table load |
1,000 ( 2200 ) kg ( lbs ) |
| TRAVEL |
| Longitudinal Travel ( X ) |
1,200 ( 47.24 ) mm ( inch ) |
| Cross Travel ( Y ) |
600 ( 23.62 ) mm ( inch ) |
| Headstock Travel ( Z ) |
500 ( 19.68 ) mm ( inch ) |
| Distance Between Spindle End and Table Top |
100 - 600 ( 3.93 - 23.62 ) mm ( inch ) |
| Distance Between Spindle Center and Column Surloce |
805 ( 31.69 ) mm ( inch ) |
| SPINDLE |
| Spindle Nose |
N.T. 40 |
| Spindle Speeds |
10000 R.P.M. |
| Spindle Speed Ronge |
infinite Variable |
| FEED |
| Cutting Feed |
10000( 393.7 ) mm/min ( inch/min ) |
| Rapid traverse |
30 / 30 / 20 ( 1181/ 1181/ 787 ) mm/min ( inch/min ) |
| Minimum Input Increment |
0.001 ( 0.0001 ) mm ( inch ) |
| ATC ( Automacic Tool Changer ) |
| Tool Holder |
BT 40 |
| Tool Storage Capacity |
24 Tools |
| Max. Tool Dia. X Length |
95 X 300 ( 3.7 X 11.81 ) ψ X mm ( inch ) |
| Max. Tool Weight |
7 ( 15 ) kg ( lbs ) |
| Tool Selection |
Random |
| MOTORS |
| Spindle Drive Continuous Rating |
7.5 ( 10 ) Kw ( HP ) |
| Motor Rated Output for 30 Minutes |
5.5 ( 7.4 ) Kw ( HP ) |
| Drive Motors X,Y,Z Axis |
3.0 (4), 3.0 (4) , 3.0 (4) |
| MACHINE WEIGHT SPACE AND PACKING |
| Floor Space |
3150 X 4060 ( 124.02 X 159.84 ) mm ( inch ) |
| Net Weight |
7,500 ( 16500 ) Kg ( lbs ) |
| |
|
| |
|
| STANDARD ACCESSORIES |
SPECIAL ACCESSORIES |
| Swivel type operator Panel |
Flat Type Chip Conveyor |
| Heat Exchanger |
Rotary Table With 4th Axis interface |
| Removable Manual Pulse Generator |
4th Axis interface only |
| Coolant Around Spindle |
Coolant Through Spindle, A type |
| Spiral Type Chip Conveyor |
Bed wash |
| Full Guard |
Automatic Tool Length Measuring Device |
| RS-232 Interface |
Automatic Centering Device |
| Automatic Power Off |
Linear Scale |
| Call Light |
CAM ATC 30 / 32 Tools |
| Automatic Lubrication Equipment |
Max. Tool 76 x 300 ψ x mm |
| Work Light |
Doa. X Length 2.99 x 11.81 ψ x mm |
| Tool Kit |
Max. Tool Weight 127 ψ mm |
| Spare Fuses |
Max. Tool Dia. of adjacent pots are empty |
| Spindle Oil Cooler |
Direct Drive Spindle 12,000 RPM 15,000 RPM |
| Transformer |
Built-in Spindle, 15,000 RPM |
| Rigid Tapping |
|
| |
|
| Specifications are subject to change without prior notice. |
