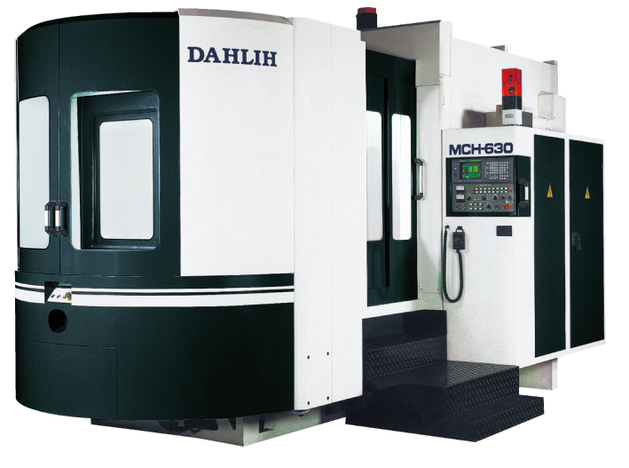

HORIZONTAL MACHINING CENTER


mch-630


SPECIFICATIONS
MODEL MCH-630
TABLE
Pallet dimensions 630 X 630 mm
Min. indexing angle 1°  ( 0.001° )
Max. table load 1000 kg
TRAVEL
Longitudinal travel  ( X ) 1000 mm
Vertical travel  ( Y ) 850 mm
Cross travel  ( Z ) 800 mm
Distance of spindle end to table center 160 - 960 mm
Distance from spindle center to table surface 100 - 900  mm
SPINDLE
Spindle nose BT  50
Spindle speeds 60 -  6000  rpm
Spindle speed range Two gears variable
FEED
Cutting feed 1 - 8000 mm / min
Rapid traverse 24  m / min
Min. input increment 0.001 mm
ATC (Automatic Tool Changer)
Tool storage capacity 60
Max. tool ( dia. x length ) Ø 110 X 400  mm
Max. tool weigth 20 KG
Tool selection Random
MOTORS
Spindle motor ( rated output for 30 minutes ) 18.5 Kw  25 HP
Drive motors  X-axis 4 kw ( 5.3 HP )
                         Y-axis 7 kw ( 9.3 HP )
                         Z-axis 4 kw ( 5.3 HP )

MACHINE SPACE AND WEIGHT
Floor space 4500 X 6230 mm
Machine weight 18,000 Kg
STANDARD OPTIONS
Spindle cooling device ATC tool storage：90
Heat exchanger Coolant system：shower coolant, coolant gun
Automatic pallet changer with manual rotation Chip wagon
X.  Y.  Z. Linear scale Auotmatic centering device
Flood coolant device Tool breakage detection device
Coolant tank Tool length measuring device
Spiral type chip conveyors Tool presetter
Spindle load meter Additional call light
Automatic power cut-off device Buzzer device
Call light
Work light
Tool kit
Flat type chip conveyor
Specifications are subject to change without prior notice.
