SPECIFICATIONS |
| MODE |

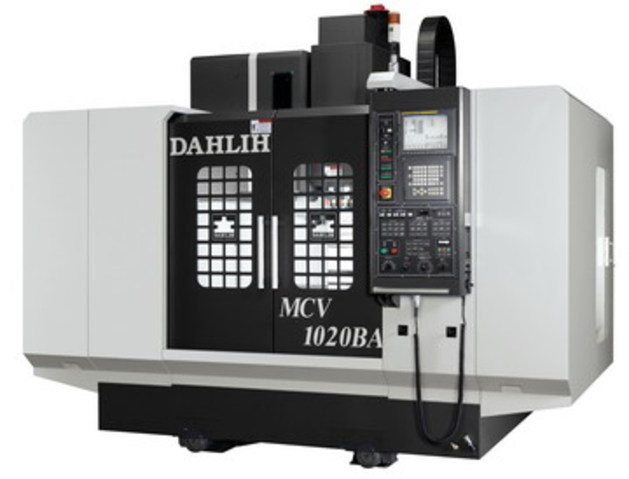

MCV-1202BA |
| TABLE |
| Working Surface |
1300 X 660 ( 51.18 X 25.98 ) mm ( inch ) |
| T-Slots ( Size X Number ) |
18 X 5 ( 0.71 X 5 ) mm ( inch ) |
| Max. table load |
1000 ( 2200 ) kg ( lbs ) |
| TRAVEL |
| Longitudinal Travel ( X ) |
1020 ( 40.16 ) mm ( inch ) |
| Cross Travel ( Y ) |
500 ( 21.65 ) mm ( inch ) |
| Headstock Travel ( Z ) |
560 ( 22.05 ) mm ( inch ) |
| Distance Between Spindle End and Table Top |
150 - 170 ( 5.91 - 27.95 ) mm ( inch ) |
| Distance Between Spindle Center and Column Surloce |
600 ( 23.62 ) mm ( inch ) |
| SPINDLE |
| Spindle Nose |
N.T. 40 |
| Spindle Speeds |
8000 R.P.M. |
| Spindle Speed Ronge |
Infinite variable |
| FEED |
| Cutting Feed |
10000 ( 393.7 ) mm/min ( inch/min ) |
| Rapid traverse |
30/30/20 ( 1181/1181/787 ) mm/min ( inch/min ) |
| Minimum Input Increment |
0.001 ( 0.0001 ) mm ( inch ) |
| ATC ( Automacic Tool Changer ) |
| Tool Holder |
BT 40 |
| Tool Storage Capacity |
16 |
| Max. Tool Dia. X Length |
90 X 300 ( 3.54 X 11.81 ) ψ X mm ( inch ) |
| Max. Tool Weight |
6 ( 13 ) kg ( lbs ) |
| Tool Selection |
Bi-Directional |
| MOTORS |
| Spindle Drive Continuous Rating |
7.5 ( 10 ) Kw ( HP ) |
| Motor Rated Output for 30 Minutes |
11 ( 14.7 ) Kw ( HP ) |
| Drive Motors X,Y,Z Axis |
3.0 (4), 3.0 (4) , 3.0 (4) |
| MACHINE WEIGHT SPACE AND PACKING |
| Floor Space |
3260 X 3060 ( 128.35 X 120.47 ) mm ( inch ) |
| Net Weight |
6000 ( 13200 ) Kg ( lbs ) |
| |
|
| |
|
| STANDARD ACCESSORIES |
SPECIAL ACCESSORIES |
| Heat Exchanger |
Enclosed Splash Guard |
| Removable Manual Pulse Generator |
Flat Type Chip Conveyor & Chip Wagon |
| Coolant Around Spindle |
Rotary Table With 4th Axis Control |
| Spiral Type Chip Conveyor |
4th Axis Connector |
| Semi-enclosed Splash Guard |
Coolant Through Tool |
| RS-232 Interface |
Coolant Through Spindle With Filter |
| Automatic Power Off |
Coolant Wash |
| Call Light |
Automatic Tool Length Measuring Device |
| Automatic Lubrication Equipment |
Automatic Centering Device (Renishaw MP-10) |
| Work Light |
Automatic Pallet Changer |
| Tool Kit |
Cam Mechanism ATC (24 Tools) |
| Spare Fuses |
Max.Tool 77 X 300 ψ X mm |
| Pendant Type Operator Panel |
Doa. X Length 3.03 X 11.81 ψ X inch |
| Spindle Cooler |
Max. Tool Weight 7 (15) Kg (lbs) |
| Rigid Tapping |
Max. Tool Dia. of adjacent pots are empty |
| |
10,000 / 12,000 / 15,000 rpm Spindle Speeds |
| |
Graphite Filtering System |
| Specifications are subject to change without prior notice. |
