TS-100 SERIES -
GANG TYPE TURNING CENTER
 |
|---|

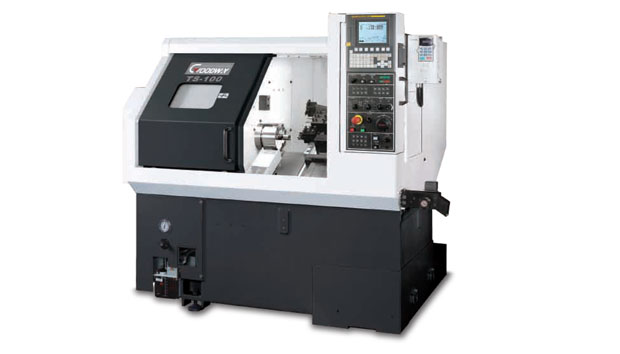

The TS-100 series is based on the concept of compact size and high speed turning power with a 30° true slant bed which enables easy loading and unloading operations and excellent chip disposal. The standard gang type tool holder can be mixed and matched with an 8-station turret or live tooling turret, providing maximum productivity and exibility for various machining applications. The modern 30° slant bed design with the
headstock mounted on the guideways can shorten
the transmission path of cutting force while
stabilizing the cutting capacity. The auto lubrication system delivers metered amounts of lubrication to the slide
ways, ball screws, and vital components.
Distribution is automatically shut off during
idling to prevent waste. |
 |

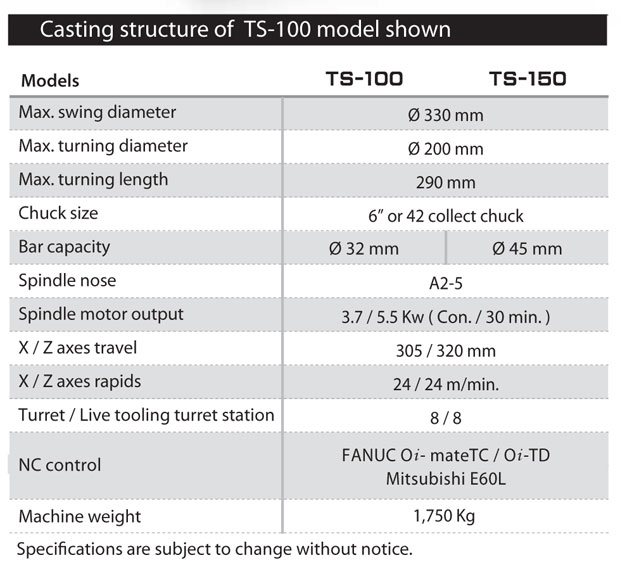

Casting structure of TS-100 model shown |
 |
The TS-100 series is equipped with standard gang type tool holding system, which increases the cutting e ciency and exibility. The maximum capacity is 8 inner-diameter cutting tools working at the same time. |
|
| Ø 120 mm ( 4.72” ) diameter super high precision curvic couplings accurately position the turret disk and clamping force ensures abundant turret rigidity for all cutting conditions. |
|
| Goodway’s live tooling turret utilize
the latest servo indexing technology
to achieve 0.2 second indexing times for adjacent stations and 0.5 second for stations at the opposite end of the disk. |
|
The optional parts catcher can be programmed to catch nished parts after cut-o . A part conveyor system is also available. |
|
