GV-800 SERIES
HIGH PRECISION VERTICAL TURNING CENTER
 |
|---|
| Based on our industrial leading technology and 30 years of manufacturing experience, Goodway is pleased to introduce the all new GV-800 series vertical turning center. With the
maximum power, high rigidity, and rapid machining speed, it is
designed especially for large complex shape work pieces. The GV-800 series can provide maximum turning and milling capacity from the dynamic demands of today and tomorrow. |

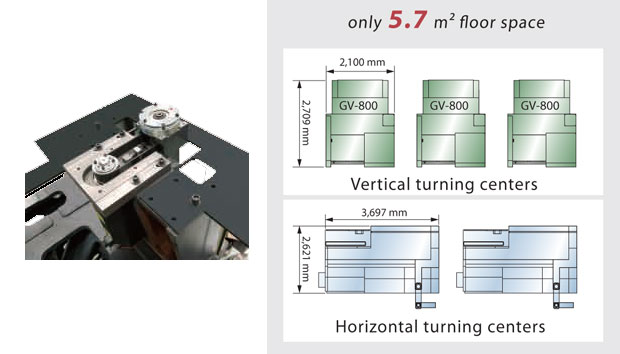

Japan made linear rails ( roller type ) provide excellent stability in operation. The compact body design and working area make the GV-800 Foot Print one of the smallest in its class. |
 |

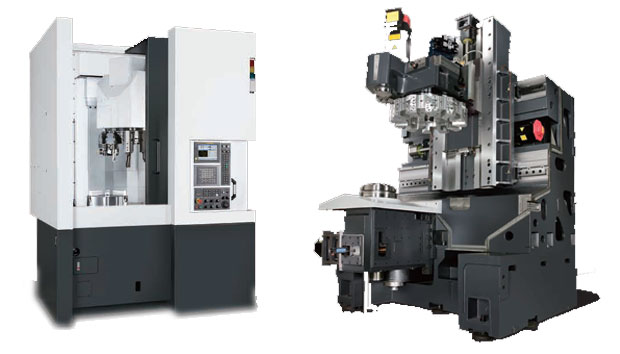

Casting structure of GV-800M model shown |

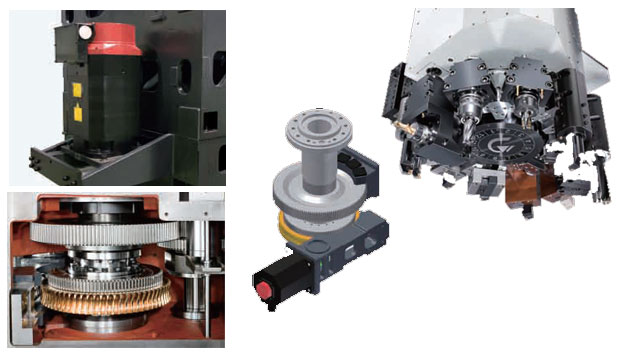

High Torque 2-speed Gear Spindle |
Generating twice the torque output of standard motors, the A/C, constant output, wide-range Fanuc αP60 high-torque i series
motor is rated at 30 Kw ( 40 HP, Peak ). This doublewound motor is designed to reach full output at 1/2 the RPM of standard. |
Optional 12-station Live Tooling Turret |
The index position of the turret is by the large Ø 320 mm Diameter Curvic Coupling. |
Advanced Turret Technology |
| GV-800 Cf-axis with Fanuc αi Servo Motor with Fanuc 1.0 million pulse super high resolution αi series pulsecoder provides ultimate performance for the C axis and with worm-gear drive an accuracy of 0.001º can be attained. |
 |
