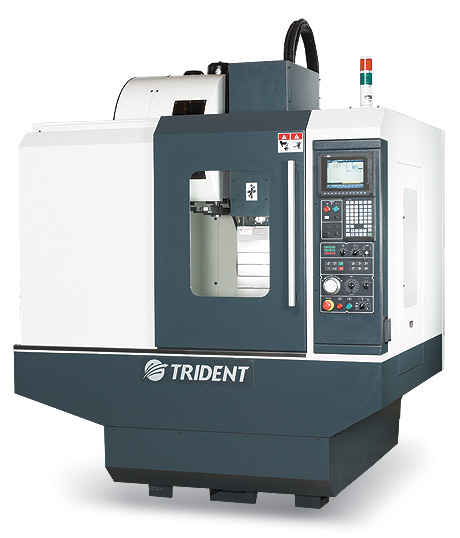

TAPPING CENTER / TR 70 Series

70

  • * Standard spindle speed 60~8,000 min-1
    * Optional spindle speed 60~12,000, 15,000 min-1
    * Rigid tapping 4,000 min-1
    * Spindle nose taper BT-30, BT-40
    * 3 axes rapid traverse X, Y: 48 M/min, Z: 48 (60) M/min
    * Fully enclosed heat isolated electric cabinet (with heat exchanger)
    * High speed ATC system T.-T.: 1.4 sec (BT-30)
    * Directly coupled spindle drive system

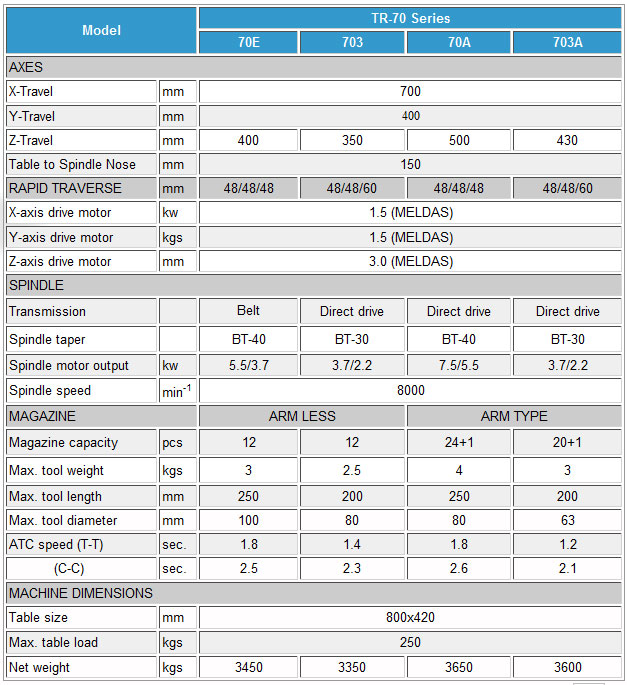

Machine Specifications
spec

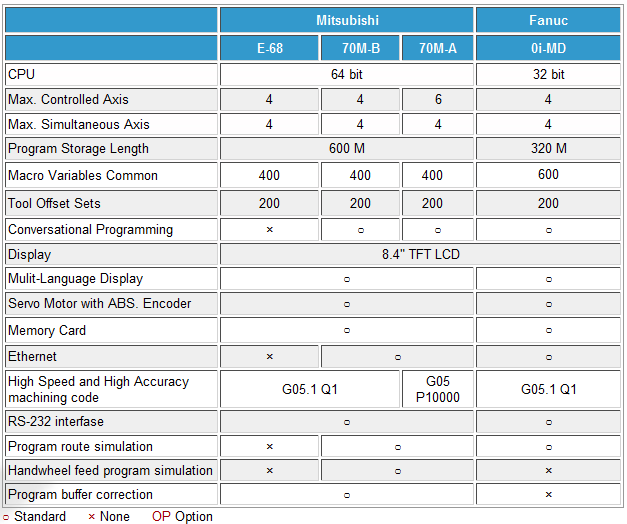

NC Specifications
spec

Standard Machine Features
  • * Spindle air blow device
    * Work light (PL light)
    * Tool coolant system
    * Leveling bolts and pads
    * Double-cabinet-type heat isolated electric cabinet (with heat exchanger)
    * Screw-type chip removing device
    * Automatic lubrication system
    * Tool kit and tools
    * Dual-color LED alarm light
    * TFT LCD monitor
　
Optional Accessories
  • * Automatic door
    * Transformer; regulator
    * 12,000 RPM, 15,000 RPM spindle
    * 20,000 RPM, 24,000 RPM spindle (BT-30 only)
    * Extra low inertia spindel motor
    * High pressure coolant through spindle
    * Automatic tool length measurement with breaking detection
    * Workpiece air blow system
    * 4th axis (NC rotary table)
    * 5th axis (4th axis with tilting shaft)
    * Thermal growth compensation
　 　

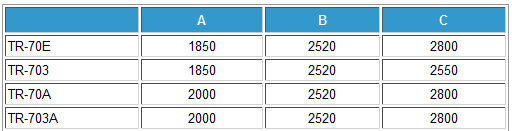

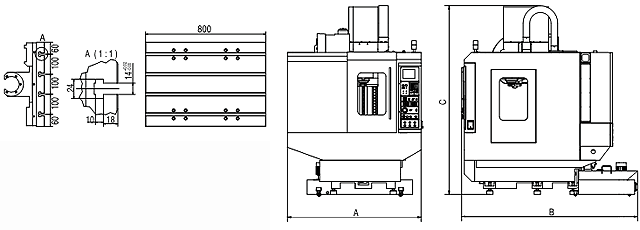

Dimensions
spec

table

* All specifications, dimensions and design characteristics are subject to change without prior notice.
