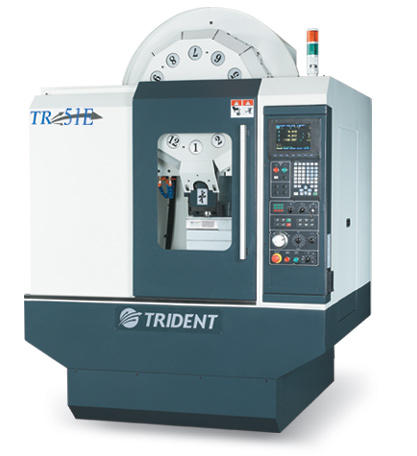

TAPPING CENTER / TR 51 Series

51

  • * Standard spindle speed 60~8,000 min-1
    * Optional spindle speed 60~12,000, 15,000 min-1
    * Rigid tapping 4,000 min-1
    * Spindle nose taper BT-30, BT-40
    * 3 axes rapid traverse X, Y:48 M/min, Z:48 (60) M/min
    * Fully enclosed heat isolated electric cabinet (with heat exchanger)
    * High speed arm type ATC system T.-T:1.4 sec (BT-30)
    * Directly coupled spindle drive system

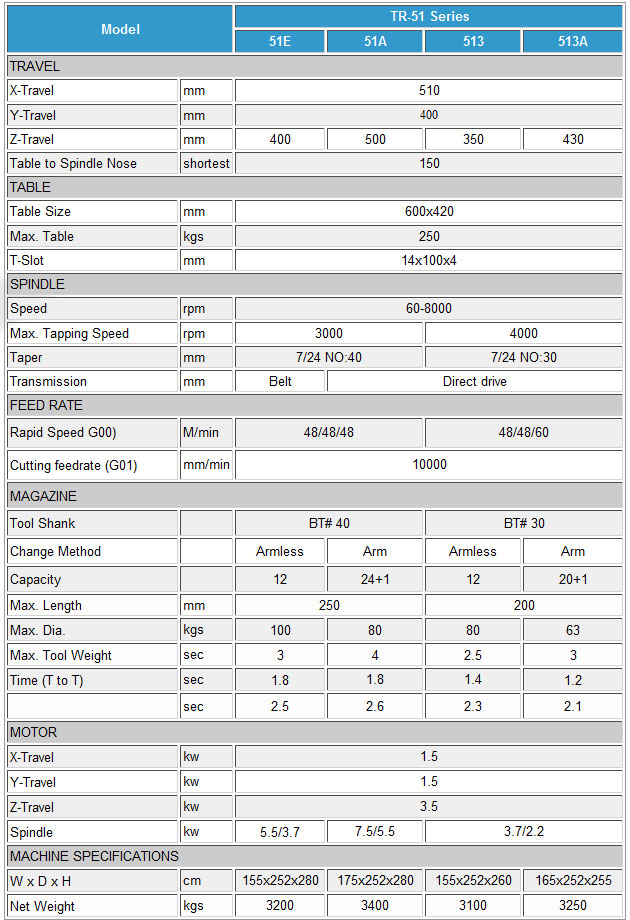

Machine Specifications
spec

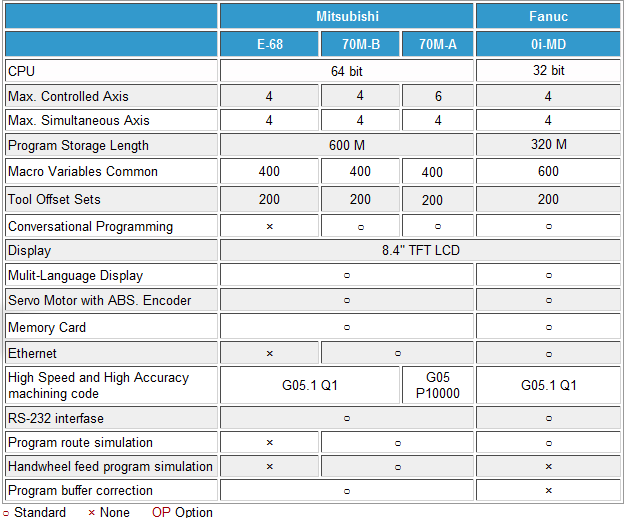

NC Specifications
spec

Standard Machine Features
  • Spindle air blow device
  • Work light (PL light)
  • Tool coolant system
  • Leveling bolts and pads
  • Double-cabinet-type heat isolated electric cabinet (with heat exchanger)
  • Screw-type chip removing device
  • Automatic lubrication system
  • Tool kit and tools
  • Dual-color LED alarm light
  • TFT LCD monitor
　
Optional Accessories
  • 12,000 RPM spindle
  • 15,000 RPM spindle (except TR-51E)
  • 20,000 RPM spindle (TR-513, TR-513A only)
  • Increased motor power
  • Extra low inertia spindle motor
  • High pressure coolant through spindle (20bar): (except TR-51E)
  • Automatic tool length measurement with breaking detection
  • Automatic door
  • Transformer; regulator
  • Workpiece air blow system
  • 4th axis
  • 5th axis
  • Thermal growth compensation
　 　

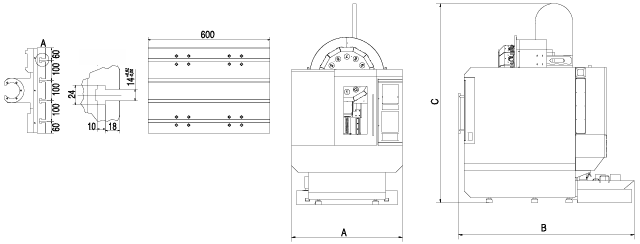

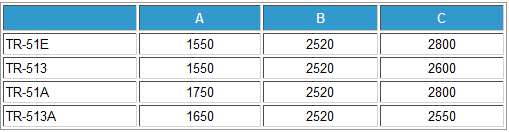

Dimensions
spec

table

* All specifications, dimensions and design characteristics are subject to change without prior notice.
